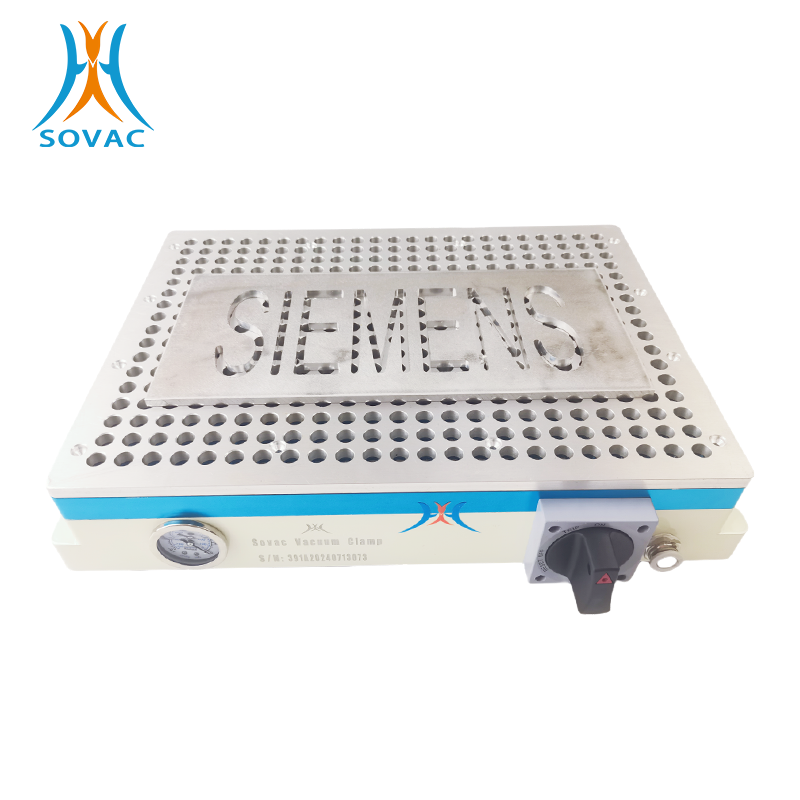

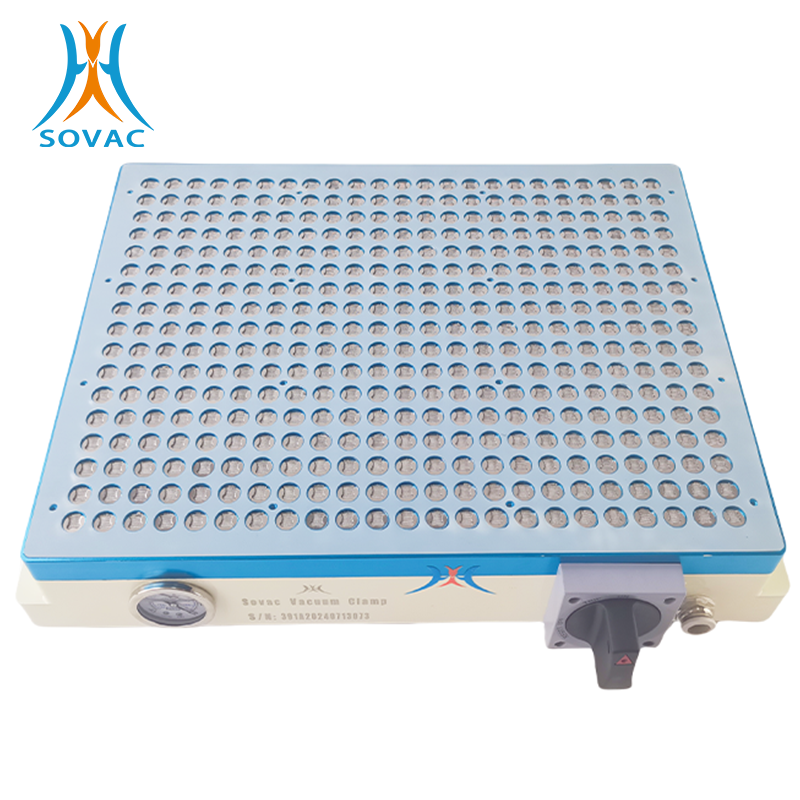

PRO-3040 Vacuum table for aluminum plate milling
113000.0 INR/Piece
Product Details:
- Equipment Type Vacuum Table
- Usage Clamping of thin sheet metal and engineering plastics in CNC machining
- Material Other
- Size 300mm*400mm
- Processing Type Standard
- Condition New
- Height 75 Millimeter (mm)
- Click to view more
X
PRO-3040 Vacuum table for aluminum plate milling Price And Quantity
- 113000.0 INR/Piece
- 1 Piece
- Low, Easy Clean Surface
- Multiple Independent Zones
- 0.05 mm/m
- Approximately 25mm
- Less than 75 dB (with proper vacuum pump)
- About 48 kg
- Standard 3/8\\
- Up to 1200mm x 900mm
- Up to 250 kg
- 0C to 50C
PRO-3040 Vacuum table for aluminum plate milling Product Specifications
- CNC Machining Center, CNC miliing machine
- 300 Millimeter (mm)
- -0.08 to 0.1 MPa (Vacuum Pressure) mpa
- Vacuum clamping system
- Bule
- AC 220V/380V, 50/60Hz Volt (v)
- Standard
- Vacuum Hose
- 300*400*75 Millimeter (mm)
- Vacuum Table
- Other
- New
- Clamping of thin sheet metal and engineering plastics in CNC machining
- 26 Kilograms (kg)
- 400 Millimeter (mm)
- Other
- Pneumatic
- 300mm*400mm
- 750 Watt (W)
- 75 Millimeter (mm)
- 1 year
- Anodized Surface
- Low, Easy Clean Surface
- Multiple Independent Zones
- 0.05 mm/m
- Approximately 25mm
- Less than 75 dB (with proper vacuum pump)
- About 48 kg
- Standard 3/8\\
- Up to 1200mm x 900mm
- Up to 250 kg
- 0C to 50C
PRO-3040 Vacuum table for aluminum plate milling Trade Information
- Cash in Advance (CID)
- 2500 Piece Per Month
- 10 Days
- All India
Product Description
1. Maximum workpiece size that can be clamped: 300mm*400mm
2. Workpiece size is recommended to be larger than 100mm*100mm.
3. Suitable workpiece thickness: 1~30mm
4. Number and diameter of vacuum holes: 391 PCS of12mm
5. No sealing rope required;
6. Allows for partial complete milling of the workpiece;
7. Employs an aluminum replacement plate design, allowing for multiple overhauls of the clamping surface;
8. Primarily used for high-precision machining of non-ferrous metals; not suitable for graphite, fiberglass, or similar materials;
9. Machining accuracy can reach 0.005mm;
10. Allow the use of cutting fluid;
11. The suction force on the workpiece is the same in each vacuum hole.
12. High-precision vacuum table with three clamping working surfaces;
Versatile Application Across Industries
The PRO-3040 Vacuum Table is expertly designed for use in CNC machining centers, making it highly suited for precision aluminum alloy workpiece, and industrial component production. Its easy-to-clean internal structure makes it perfectly suited for sheet metal up to 300mm x 400mm in size. Whether in aerospace parts manufacturing plants or mold making plants, its superior clamping force provides reliable clamping for a variety of workpieces, enhancing any workspace requiring a safe and efficient clamping solution.
Reliable Certifications and Delivery Options
1. CE certification;
2. Customized services for users;
3. Remote installation and usage guidance provided by our Indian team;
4. One year warranty;
5. Localized after-sales service in India.
FAQ's of PRO-3040 Vacuum table on CNC machining center:
Q: How does the PRO-3040 Vacuum Table enhance CNC machining efficiency?
A: The PRO-3040 provides a vacuum clamping area in any position, eliminates the need for sealing ropes, allows for quick setup, enables complete milling of the workpiece, securely holds various materials, and minimizes clamping time, thereby reducing machining time. Replacement plate surfaces can be milled multiple times with a flat-end mill, improving part accuracy.Q: What materials and sheet sizes can be used on this vacuum table?
A: Non-ferrous metals, engineering plastics, and non-metallic materials are acceptable. Vacuum tables operate more stably when using cutting fluid. Materials that cannot be used include: fiberglass, graphite, and ceramics. Workpiece dimensions must be larger than 100mm x 100mm.Q: Where is the ideal installation site for the PRO-3040 Vacuum Table?

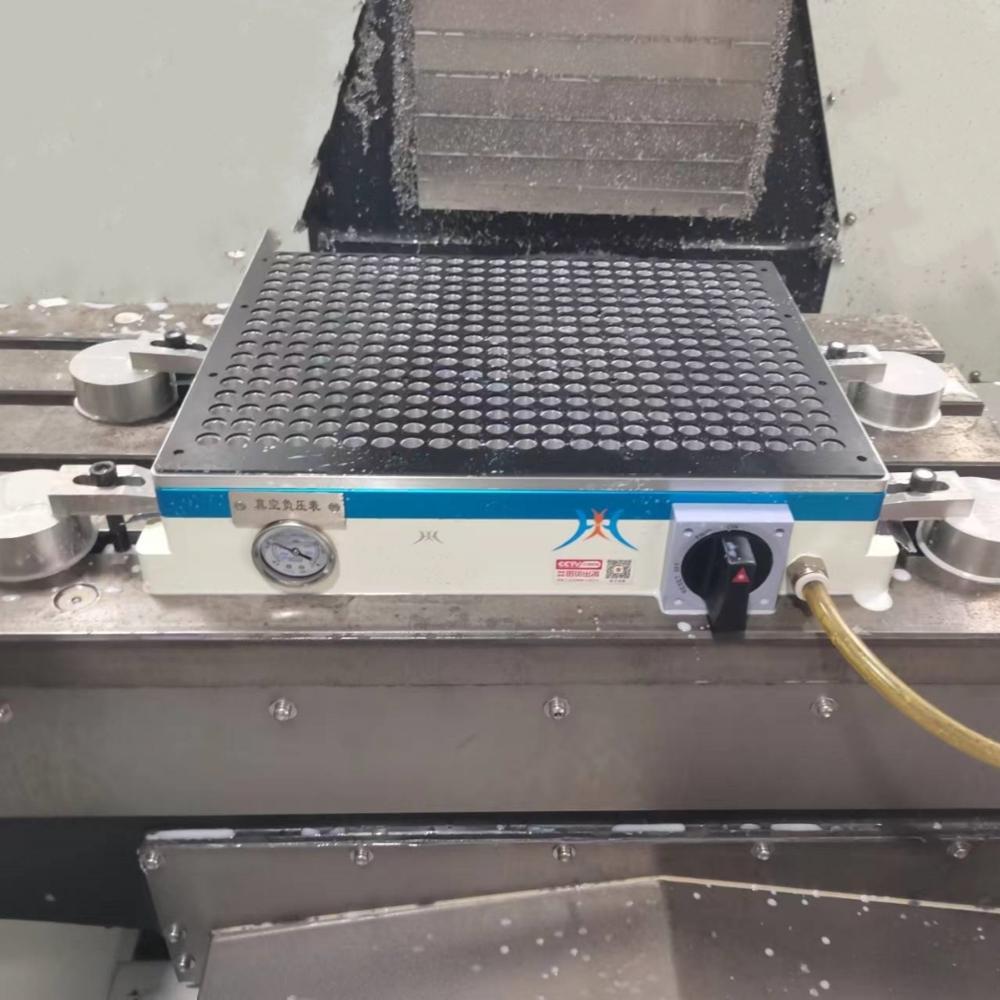

A: Install the vacuum table on the T-slot table of the CNC milling machine. Secure the vacuum table to the T-slot table using T-slot clamps. Then connect the vacuum hose.Q: What accessories are included with the PRO-3040 Vacuum Table?
A: A typical configuration includes an automatic vacuum liquid separator and a buffer tank. A vacuum pump or Venturi vacuum generator is provided, the choice of which is made by the user. The vacuum table comes standard with an aluminum replacement plate; note that this is not an aluminum-plastic composite replacement plate.Q: When can customers expect shipped goods after placing an order?
A: There is only one warehouse globally, located in Chengdu, China. Therefore, if an Indian customer places an order and it is shipped by air, it will be delivered to the customer's company within 10 days after receiving payment.Tell us about your requirement
