Vacuum Fixture

Explore our comprehensive range of Vacuum Fixture, engineered to deliver top-notch precision and efficiency for diverse applications. As a reputed exporter, manufacturer, and supplier with over 9 years of experience, we specialize in products like Vacuum Fixtures for PCB solder mask inkjet printers and Vacuum Fixtures for Printed Circuit Boards with holes. Our fixtures stand out for their marvelous durability, unmatched reliability, and ease of use, making them a popular choice in the industry. Designed with cutting-edge technology, they ensure magnificent performance and consistent quality, all at the best prices available in the market. These fixtures provide an excellent hold for varied PCB sizes, offer an energy-efficient vacuum system, facilitate seamless integration, reduce processing time, and come with superior adaptability to your specific operational needs. Get unparalleled supply ability across the domestic market, ensuring prompt and effective delivery anywhere in India. Ideal for a wide range of industrial applications, our Vacuum Fixtures are tailored to drive operational excellence and surpass industry benchmarks. Reach out to experience the best-in-class solutions that redefine precision and innovation!

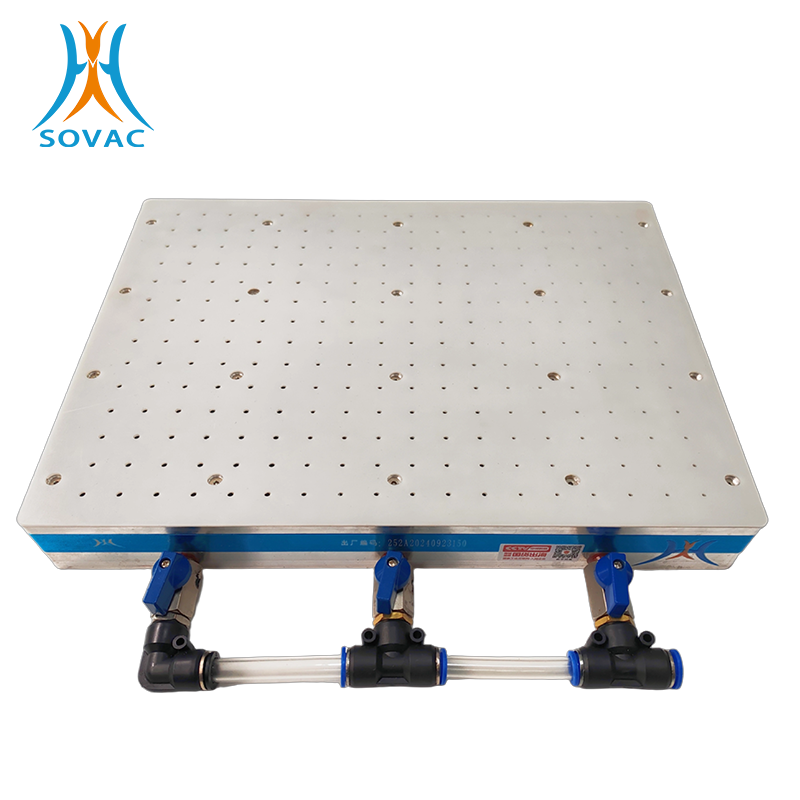

Vacuum Fixture for Ultra-thin glass, PCB, thin film

Price 70000.0 INR/ Piece

MOQ : 1 Piece

  • Equipment Type
  • Vacuum Fixture
  • Accessories
  • Vacuum pump, Hose connectors,
  • Application
  • Vacuum holding of Printed Circuit Boards with through-holes during cutting, Pringting, testing, or soldering
  • Coating Type
  • Anodized Finish
  • Condition
  • New
  • Dimension (L*W*H)
  • 300 x 400 x 38 Millimeter (mm)
  • Material
  • Other
  • Power Consumption
  • 750W (excluding vacuum pump) Watt (W)
  • Power Mode
  • Electric
  • Pressure Output
  • -0.08~-0.1 mpa
  • Technology
  • Other
  • Voltage
  • 220V AC Volt (v)

Vacuum fixture for PCB solder mask inkjet printer

MOQ : 10 Units

  • Equipment Type
  • Vacuum Fixture
  • Accessories
  • Vacuum pump, air hoses, gasket seals
  • Application
  • PCB Solder Mask Inkjet Printer
  • Coating Type
  • Anodized
  • Condition
  • New
  • Dimension (L*W*H)
  • 480mm x 330mm x 60mm
  • Material
  • Other, Aluminum Alloy and Stainless Steel
  • Power Consumption
  • 120W
  • Power Mode
  • Electric
  • Pressure Output
  • -80kPa to -90kPa (Vacuum)
  • Processing Type
  • Other, CNC Machined
  • Technology
  • Other, Vacuum Holding
  • Voltage
  • AC 220V/50Hz
