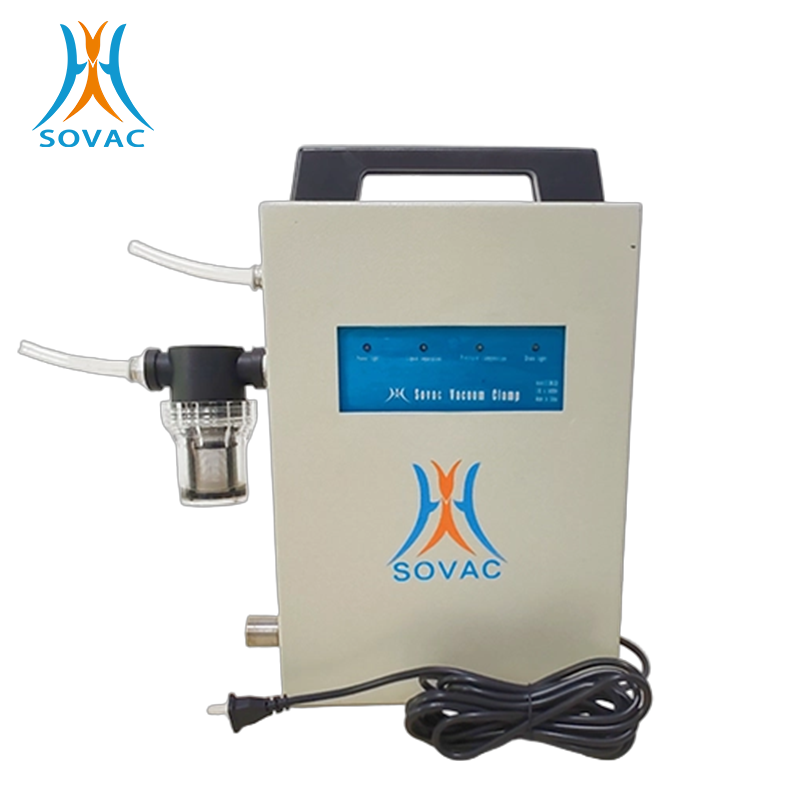

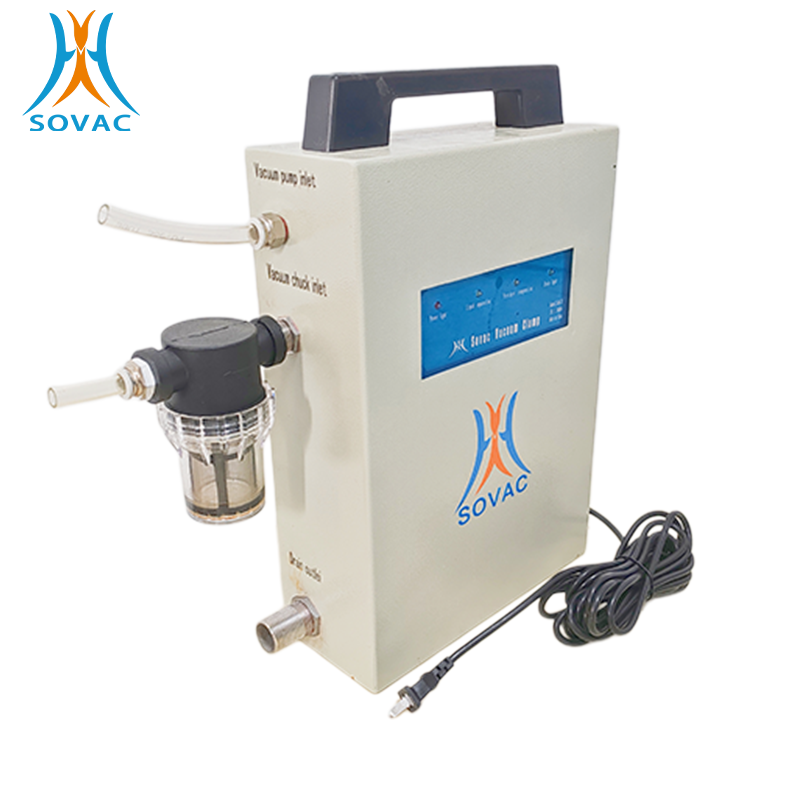

Vacuum Pump with Automatic Liquid Separator
140000.0 INR/Piece
Product Details:
- Usage Automatic separation of liquids in a vacuum
- Equipment Type Vacuum Pump with Automatic Liquid Separator
- Material Steel
- Processing Type Standard
- Size 260*410*110
- Height 410 Millimeter (mm)
- Condition New
- Click to view more
X
Vacuum Pump with Automatic Liquid Separator Price And Quantity
- 140000.0 INR/Piece
- 1 Piece
- 2 to 10 Litres
- Semi-Automatic / Automatic
- 3/4" to 2" BSP/NPT
- Base Mounted
- 70 dB
- Air Cooled
- 25 to 300 m3/hr (Model Dependent)
- Oil-Sealed Rotary Vane / Water Ring Type (as per selection)
- 1440 - 2850 RPM
- Blue / Grey (custom options available)
Vacuum Pump with Automatic Liquid Separator Product Specifications
- Automatic separation of liquids in a vacuum
- Vacuum liquid separation
- Automatic vacuum liquid separator
- 260 Millimeter (mm)
- White
- Electric
- Painted
- 1 year
- 6 Watt (W)
- Standard
- 410 Millimeter (mm)
- 410 x 260 x 110 Millimeter (mm)
- Other
- Vacuum Pump with Automatic Liquid Separator
- 110 Millimeter (mm)
- 230(Single Phase) Volt (v)
- -0.1 mpa
- Connecting Hoses
- Steel
- 260*410*110
- 27 Kilograms (kg)
- New
- 5.2 L/min
- 2 to 10 Litres
- Semi-Automatic / Automatic
- 3/4" to 2" BSP/NPT
- Base Mounted
- 70 dB
- Air Cooled
- 25 to 300 m3/hr (Model Dependent)
- Oil-Sealed Rotary Vane / Water Ring Type (as per selection)
- 1440 - 2850 RPM
- Blue / Grey (custom options available)
Vacuum Pump with Automatic Liquid Separator Trade Information
- 2500 Piece Per Month
- 10 Days
- All India
Product Description
When using vacuum clamping tools, if cutting fluid or coolant is sprayed onto the tool, a small amount of liquid will always be drawn into the vacuum system and eventually enter the vacuum pump. Therefore, a vacuum pump with an automatic liquid separation function is essential. Our company has developed a vacuum pump with this function. However, considering the pressure of replacing parts due to cross-border sales, we developed an automatic vacuum liquid separator to achieve the effect of automatically separating liquid from the vacuum. If you only need to purchase a conventional vacuum pump locally in India, such as an oil-free silent vacuum pump, an oil-lubricated rotary vane vacuum pump, or a screw vacuum pump, you only need to install the CS-SM-220 automatic vacuum liquid separator at the front end of the vacuum pump to achieve automatic liquid separation. Since the automatic vacuum liquid separator is maintenance-free and requires no parts replacement, the automatic vacuum liquid separator combined with a vacuum pump purchased locally in India can form a complete vacuum pump with liquid separation function.
Versatile Usage and Applications
Product name Automatic Vacuum Liquid Separator
ModelCS-SM-220
Voltage210~250V/ Single Phase/50Hz/60Hz/6W
Drainage interval time: Setup free, adaptive adjustment
Maximum liquid separation rate: 5.2L/min
Maximum permissible vacuum flow rate: 700L/min
Product weight: 21kg
Packing weight: 27KG
Please see our company's introduction to automatic vacuum liquid separators for more details.
