Vacuum fixture for PCB solder mask inkjet printer

Get a Price/Quote

Product Details:

Equipment Type Vacuum Fixture
Material Aluminum Alloy and Stainless Steel
Processing Type CNC Machined
Condition New
Technology Vacuum Holding
Dimension (L*W*H) 480mm x 330mm x 60mm
Power Mode Electric
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Vacuum fixture for PCB solder mask inkjet printer Price And Quantity

Minimum Order Quantity 10 Unit

Surface Hardness HV400
Clamping Method Soft-seal vacuum block
Max. PCB Size 450mm x 310mm
Compatible PCB Thickness 0.6-2.2mm
Vacuum Interface Diameter 8mm
Operating Temperature 0C-50C
Noise Level < 60dB
Working Surface Flatness 0.05mm
Net Weight 7.5kg
Working Speed Up to 800mm/s
Fixture Color Silver or customized

Vacuum fixture for PCB solder mask inkjet printer Product Specifications

Dimension (L*W*H) 480mm x 330mm x 60mm
Power Mode Electric
Technology Vacuum Holding
Condition New
Application PCB Solder Mask Inkjet Printer
Voltage AC 220V/50Hz
Material Aluminum Alloy and Stainless Steel
Coating Type Anodized
Pressure Output -80kPa to -90kPa (Vacuum)
Accessories Vacuum pump, air hoses, gasket seals
Equipment Type Vacuum Fixture
Power Consumption 120W
Processing Type CNC Machined

Surface Hardness HV400
Clamping Method Soft-seal vacuum block
Max. PCB Size 450mm x 310mm
Compatible PCB Thickness 0.6-2.2mm
Vacuum Interface Diameter 8mm
Operating Temperature 0C-50C
Noise Level < 60dB
Working Surface Flatness 0.05mm
Net Weight 7.5kg
Working Speed Up to 800mm/s
Fixture Color Silver or customized

Vacuum fixture for PCB solder mask inkjet printer Trade Information

Supply Ability 2500 Unit Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

Explore masterful engineering with our Vacuum Fixture for PCB Solder Mask Inkjet Printer, a crackerjack solution crafted for professionals who demand towering quality. Limited stock available-sizzling technology ensures peerless working surface flatness (0.05mm) and robust handling of PCBs up to 450mm x 310mm. Its CNC-machined aluminum alloy and stainless steel body, with extra-hard anodized finish ( HV400), offers solid durability. The soft-seal vacuum block clamps securely, while quiet operation (<60dB) and a blazing working speed (up to 800mm/s) streamline manufacturing. Customizable color options available from China's trusted exporter, manufacturer, and supplier.

Features & Competitive Advantages

Our vacuum fixture boasts a flatness tolerance of 0.05mm and accepts PCB thicknesses from 0.6-2.2mm. The anodized aluminum alloy structure delivers high surface hardness ( HV400) and durable, precisely machined parts. Its crackerjack vacuum holding technology and robust clamping via soft-seal vacuum blocks guarantee secure, stable PCB positioning. With working speeds up to 800mm/s and minimal noise (<60dB), this fixture stands out as a masterful choice for rapid, reliable processing.

Certifications & Market Packaging

Our vacuum fixture complies with major quality certifications crucial to large proposal amounts and significant expenditure projects, reinforcing its towering market value. Established as a preferred choice in major domestic markets across China, this equipment guarantees consistency and reliability. Each unit is securely packaged with the vacuum pump, air hoses, and gasket seals, safeguarding your investment throughout delivery and installation. This approach ensures maximum protection and readiness upon arrival.

FAQ's of Vacuum fixture for PCB solder mask inkjet printer:

Q: How does the vacuum fixture ensure secure PCB clamping during the inkjet printing process?

A: The fixture uses a soft-seal vacuum block system and vacuum holding technology, providing even, secure clamping pressure across the PCB's surface. This prevents movement and ensures precise, repeatable positioning throughout the printing cycle.

Q: What PCB sizes and thicknesses is the vacuum fixture compatible with?

A: It accommodates PCBs up to 450mm x 310mm and supports thicknesses ranging from 0.6mm to 2.2mm, making it suitable for various standard and custom PCB manufacturing requirements.

Q: Where is this vacuum fixture manufactured and exported from?

A: This vacuum fixture is manufactured, supplied, and exported from China by a trusted industry leader with extensive experience in precision electronic equipment.

Q: What advantages does the anodized aluminum alloy construction provide?

A: The anodized aluminum alloy gives the fixture a surface hardness of HV400, enhancing durability, resisting wear, and supporting a long operational life-especially important in high-throughput environments.

Q: How does the product maintain a quiet workspace?

A: The fixture operates at a noise level below 60dB, so it delivers high-performance vacuum clamping while maintaining a quiet, comfortable workspace for operators.

Q: What accessories are included with the vacuum fixture upon delivery?

A: Each unit comes complete with a vacuum pump, air hoses, and gasket seals, allowing for straightforward setup and immediate integration into your production line.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Vacuum Fixture' category

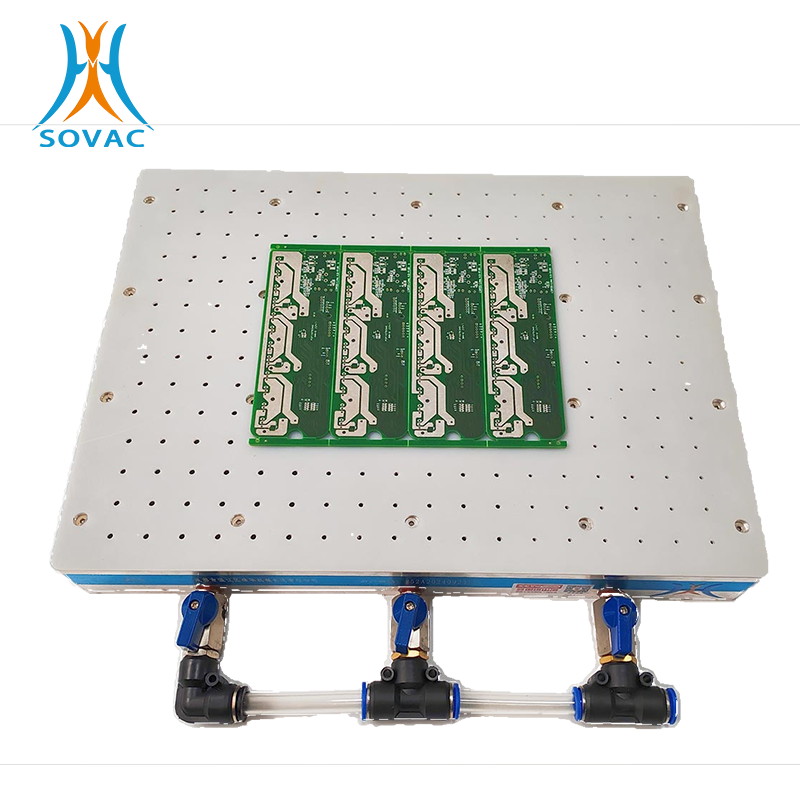

Vacuum Fixture for Ultra-thin glass, PCB, thin film Price : 70000.0 INR/Piece Minimum Order Quantity : 1 Application : Vacuum holding of Printed Circuit Boards with throughholes during cutting, Pringting, testing, or soldering Voltage : 220V AC Volt (v) Material : Other Power Mode : Electric Technology : Other Dimension (L*W*H) : 300 x 400 x 38 Millimeter (mm) Condition : New Power Consumption : 750W (excluding vacuum pump) Watt (W) Coating Type : Anodized Finish Accessories : Vacuum pump, Hose connectors, Pressure Output : 0.08~0.1 mpa Equipment Type : Vacuum Fixture
