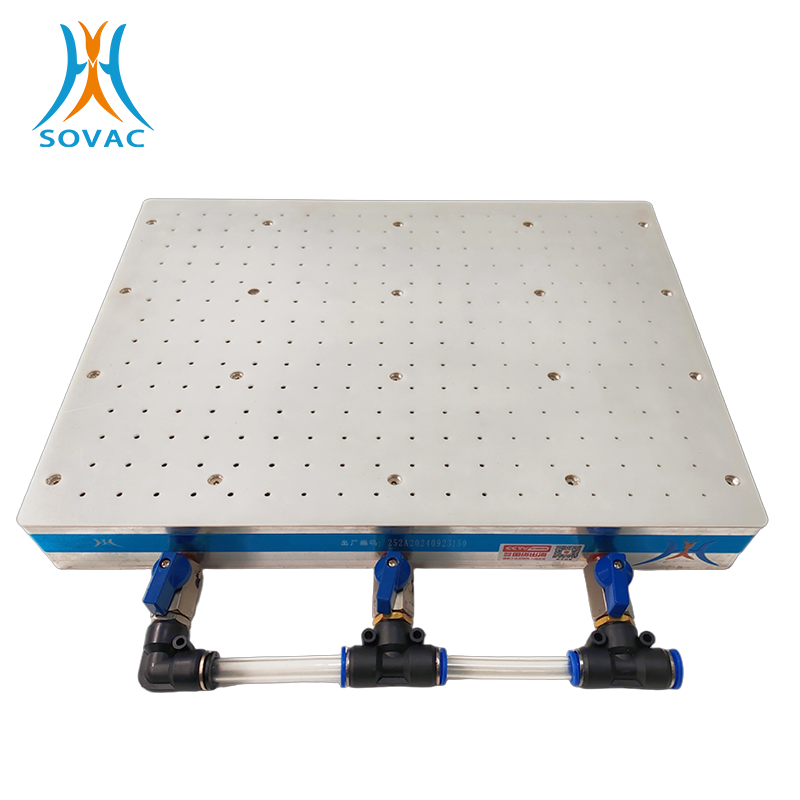

Vacuum Fixture for Ultra-thin glass, PCB, thin film
70000.0 INR/Piece
Product Details:
- Equipment Type Vacuum Fixture
- Material Other
- Processing Type
- Condition New
- Technology Other
- Dimension (L*W*H) 300 x 400 x 38 Millimeter (mm)
- Power Mode Electric
- Click to view more
X
Vacuum Fixture for Ultra-thin glass, PCB, thin film Price And Quantity
- 1 Piece
- 70000.0 INR/Piece
- 0.1 mm
- Manual / Automatic Depending on Setup
- 6 mm
- RoHS/CE Certified
- For PCBs with hole diameters from 0.8 mm to 6 mm
- < 1% per hour
- 250 mm x 200 mm
- Yes, based on board design
- 10C to 50C
- Anti-static coated
- 2.5 kg
Vacuum Fixture for Ultra-thin glass, PCB, thin film Product Specifications
- Vacuum pump, Hose connectors
- Vacuum Fixture
- 300 x 400 x 38 Millimeter (mm)
- Vacuum holding of Printed Circuit Boards with through-holes during cutting, Pringting, testing, or soldering
- 220V AC Volt (v)
- Anodized Finish
- Electric
- Other
- 750W (excluding vacuum pump) Watt (W)
- New
- Other
- -0.08~-0.1 mpa
- 0.1 mm
- Manual / Automatic Depending on Setup
- 6 mm
- RoHS/CE Certified
- For PCBs with hole diameters from 0.8 mm to 6 mm
- < 1% per hour
- 250 mm x 200 mm
- Yes, based on board design
- 10C to 50C
- Anti-static coated
- 2.5 kg
Vacuum Fixture for Ultra-thin glass, PCB, thin film Trade Information
- 2500 Piece Per Month
- 10 Days
- All India
Product Description
Experience the superior performance of our vacuum clamp specifically designed for perforated printed circuit boards, renowned for its craftsmanship and reliability. Featuring a new, exclusive design, it's constructed from CNC-machined aluminum alloy and silicone layers. This vacuum clamp is customizable to meet specific user needs. It can hold materials including epoxy resin, PCBs, glass, films, and PET films, allowing these boards to have perforations. It boasts an anti-static coated surface, customizable layout, CE certification, a highly competitive price, and a leakage rate of less than 1% per hour. This vacuum clamp is ideal for printing, cutting, testing, and soldering, offering manufacturers exceptional quality and excellent compatibility.
Key Applications & Competitive Edge of Vacuum Fixture for PCB with Holes
The Vacuum Fixture excels in secure vacuum holding of printed circuit boards during assembly, soldering, and testing phases. Its primary competitive advantages include RoHS/CE compliance, precise 0.1 mm clamping tolerance, and an anodized anti-static surface ensuring safety in sensitive environments. Designed for PCBs with through-holes, it's suitable across various electronics sectors. Its robust construction and compatibility with both manual and automatic setups make it a first-choice solution for exporters, manufacturers, and suppliers.
Sample, Certification, and Payment Features of the Vacuum Fixture
Key Applications & Competitive Edge of Vacuum Fixture for PCB with Holes
The Vacuum Fixture excels in secure vacuum holding of printed circuit boards during assembly, soldering, and testing phases. Its primary competitive advantages include RoHS/CE compliance, precise 0.1 mm clamping tolerance, and an anodized anti-static surface ensuring safety in sensitive environments. Designed for PCBs with through-holes, it's suitable across various electronics sectors. Its robust construction and compatibility with both manual and automatic setups make it a first-choice solution for exporters, manufacturers, and suppliers.
Sample, Certification, and Payment Features of the Vacuum Fixture
1. CE certification;
2. Customized services for users;
3. Remote installation and usage guidance provided by our Indian team;
4. One year warranty;
5. Localized after-sales service in India.
FAQ's of Vacuum Fixture for Printed Circuit Board with Holes:
Q: How does the Vacuum Fixture secure printed circuit boards during assembly?
A: The Vacuum Fixture uses precision vacuum clamping technology to securely hold PCBs with through-holes, ensuring minimal movement and enhanced accuracy during assembly, soldering, and testing.Q: What board sizes and hole diameters are compatible with this fixture?
A: This fixture is compatible with printed circuit boards up to 300 mm x 400 mm in size. However, it can be customized to meet specific requirements. It can accommodate holes with diameters ranging from 0.8 mm to 6 mm.Q: What are the main advantages of a silicone layer surface?
A: The surface uses silicone as the clamping working surface. No static electricity is generated under non-friction conditions. At the same time, clamping force is maintained in the central area, ensuring the PCB remains highly flat. The PCB is allowed to have a certain amount of copper thickness and unevenness.Q: When is it recommended to use manual versus automatic operation mode?
A: In automated production lines where PLC-controlled clamping and releasing are required, automatic clamping control switches are necessary. In manual operation scenarios, manual switches for vacuum fixtures are sufficient.Q: What is the procedure for customizing a vacuum fixture?
A: Contact the manufacturer, who will provide a technical requirements questionnaire. Based on these requirements, design initial CAD drawings of the vacuum fixture and provide an estimated quote. Once the user confirms, a contract will be signed and the order will be executed.Tell us about your requirement
