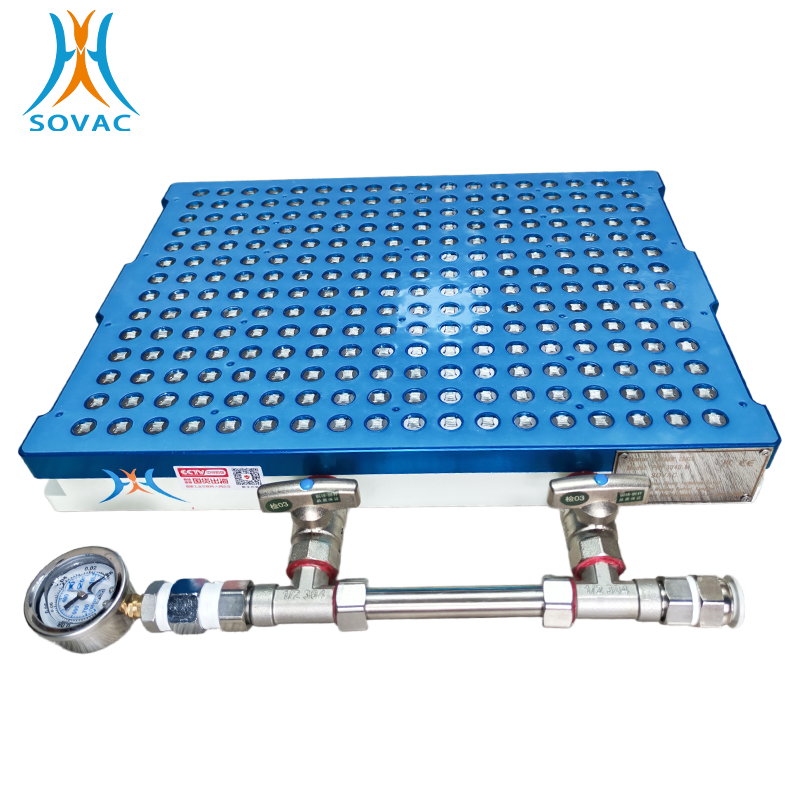

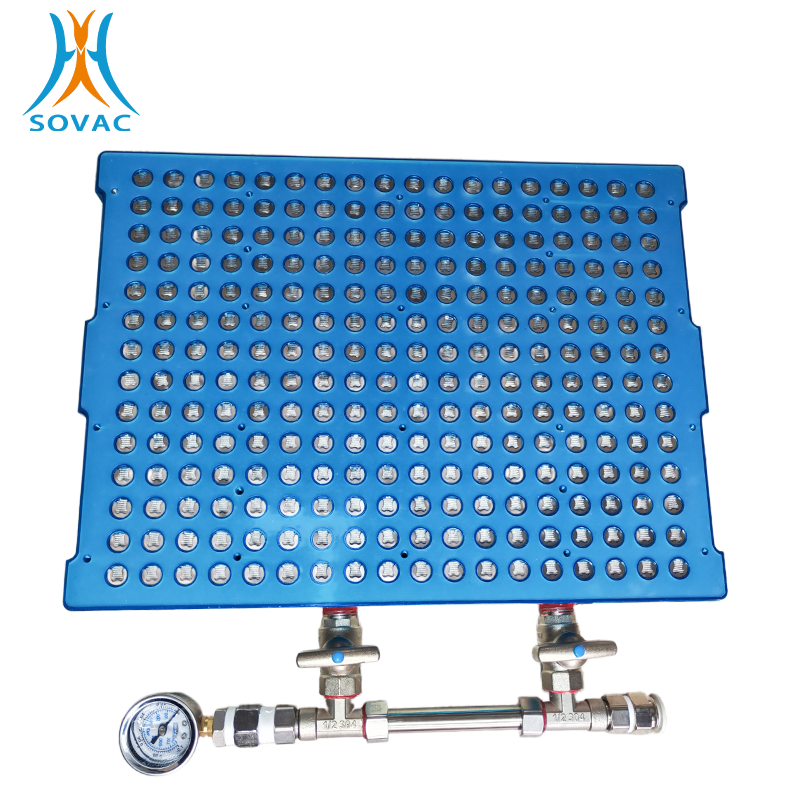

PRI-3040-M Primary Vacuum Table
70000.0 INR/Piece
Product Details:
- Equipment Type Primary Vacuum Table
- Usage Clamping non-magnetic thin plate workpiece
- Material Other
- Processing Type Standard
- Size 300mm*400mm
- Height 48 Millimeter (mm)
- Condition New
- Click to view more
X
PRI-3040-M Primary Vacuum Table Price And Quantity
- 70000.0 INR/Piece
- 1 Piece
- Approx. 85 kg
- Adjustable / Dependent on Process
- 5C to 45C
- Up to 120 kg
- Overheat and Overcurrent Protection
- Fitted with Lockable Castor Wheels
- 19 mm (Internal Diameter)
- Below 65 dB(A) during operation
- Digital/Analog Switch with Indicator Lights
- Smooth Perforated Top for Uniform Airflow
PRI-3040-M Primary Vacuum Table Product Specifications
- 220-240 V, 50/60 Hz Volt (v)
- 24 Kilograms (kg)
- 48 Millimeter (mm)
- 300*400*48 Millimeter (mm)
- Pneumatic
- 400 Millimeter (mm)
- -0.08~-0.1 mpa
- One year
- 300mm*400mm
- Standard
- New
- Clamping thin sheet workpieces such as non-ferrous metals or engineering plastics
- Clamping non-magnetic thin plate workpiece
- Other
- Anodizing
- Not applicable
- Other
- Primary Vacuum Table
- 300 x 400 x 48 mm Millimeter (mm)
- blue
- PRI-3040-M
- Vacuum Pump, Control Unit, Connection Tubes
- 750 Watt (W)
- Approx. 85 kg
- Adjustable / Dependent on Process
- 5C to 45C
- Up to 120 kg
- Overheat and Overcurrent Protection
- Fitted with Lockable Castor Wheels
- 19 mm (Internal Diameter)
- Below 65 dB(A) during operation
- Digital/Analog Switch with Indicator Lights
- Smooth Perforated Top for Uniform Airflow
PRI-3040-M Primary Vacuum Table Trade Information
- Cash in Advance (CID)
- 2500 Piece Per Month
- 10 Days
- All India
Product Description
1. Maximum workpiece size that can be clamped: 300mm*400mm;
2. It is recommended that the workpiece size be larger than 100mm*100mm;
3. Suitable workpiece thickness: 1~40mm
4. Number and diameter of vacuum holes: 252 12mm;
5. Modular design;
6. No sealing rope required;
7. Allows for complete milling of the workpiece;
8. Replaceable polyurethane clamping surfaces allow for multiple overhauls of the clamping surfaces;
9. Replaceable protective plates, with soft and medium-hard clamping surfaces to choose from;
10. Suitable for thin sheet metal workpieces of various materials, including non-ferrous metals, non-metals (glass fiber, ceramics, graphite), engineering plastics (POM, bakelite, PTFE, polyurethane, PTFE, PEEK, epoxy resin) and substrates;
11. Allows the use of cutting fluid;
12. Belongs to the category of low-precision vacuum tables, with a maximum clamping accuracy of 0.02mm;
Sensational Utility Across Application Surfaces

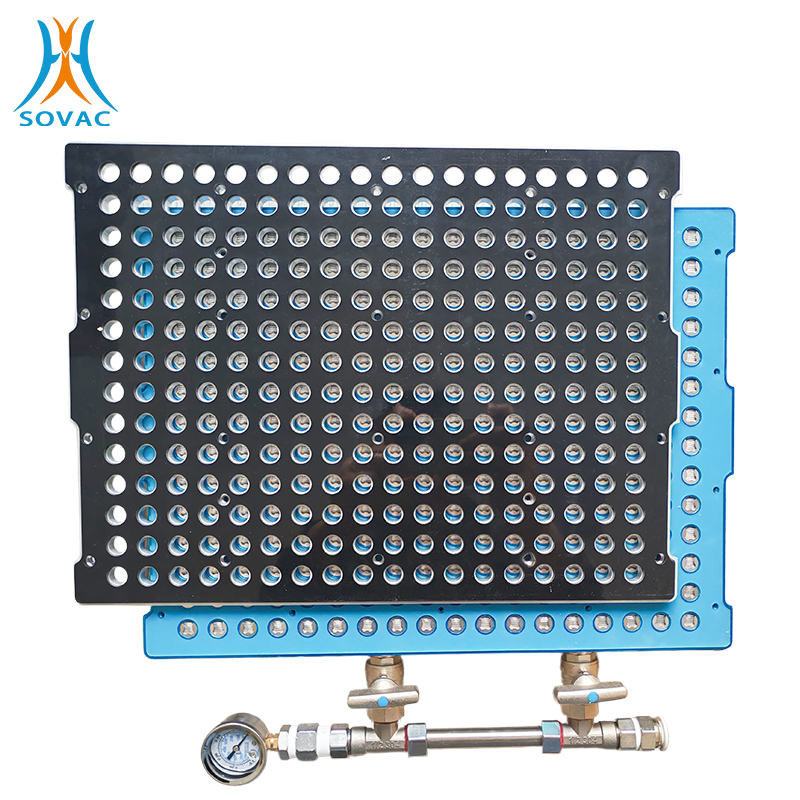

A replaceable protective plate fully protects the vacuum table main unit from damage. The protective plate is replaceable and is a low-cost consumable. The soft clamping surface of the vacuum table main unit can also be used as an emergency clamping surface. The soft clamping surface of the main unit can accommodate workpieces with poor flatness. Compared to traditional grid vacuum tables, this new automatic valve vacuum table can quickly complete clamping, and its advantages are even more apparent for irregularly shaped workpieces. Localized after-sales service is provided for Indian users.
Sale Price, Packaging, and Transportation Details
The PRI-3040-M is a series specifically developed based on comprehensive research of existing users in India. For Indian users, the vacuum table is now sold at a highly competitive price, with door-to-door air freight service provided by internationally renowned courier companies such as FedEx. Each unit is securely packaged to prevent damage during transport, ensuring smooth delivery to your factory. With its strong innovative capabilities, it meets the vacuum clamping needs of most users, making this vacuum table ideal for distributors and customers seeking fast and reliable delivery. Experience the superior logistics and flexible options offered by experienced exporters and manufacturers.
FAQ's of PRI-3040-M Primary Vacuum Table:
Q: How does the PRI-3040-M Primary Vacuum Table ensure uniform airflow during operation?
A: A high-velocity vacuum is only required for the brief moment the switch is activated; once the workpiece is clamped, the required vacuum velocity is lower. A buffer tank is typically installed to ensure constant vacuum pressure and clamping force.Q: What are the main features in this vacuum table?
A: It is not picky about workpiece material or cutting fluid, and its price is relatively low, making it an entry-level, highly reliable series. It offers a clamping accuracy of up to 0.02mm.Q: What are the size requirements for workpieces used with SOVAC vacuum tables?
A: Generally, a minimum individual workpiece size of 100mm x 100mm is recommended. For smaller components (e.g., 50mm x 50mm), we suggest using a "nesting" (tiling) strategy. Alternatively, auxiliary clamping methods such as adhesive wax or single-sided adhesive tape can be used. Please contact the manufacturer for specific operational techniques.
Q: How should the SOVAC vacuum table be cleaned?
A: There are three recommended cleaning modes:
- Mode 1 (Water Rinse): Applicable only for wet machining. With the vacuum valve partially open, pour clean water over the surface while the vacuum is active. The water will be sucked through the internal structure to flush out debris. Note: This requires an Automatic Liquid Separator in your vacuum line.
- Mode 2 (Reverse Air Purge): Blow compressed air in reverse through the vacuum port to clear internal passages.
- Mode 3 (Top-down Air Blast): Use a white air-shroud to blow compressed air directly into the vacuum orifices from above.
- Maintenance Schedule: For wet machining, perform all three modes daily. For dry machining, perform Modes 2 and 3 after every workpiece cycle.
Q: What is the recommended workpiece thickness for SOVAC vacuum tables?
A: We recommend a workpiece thickness between 1mm and 40mm. For ultra-thin materials (0.3mm to 1mm), it is necessary to reduce the diameter of the vacuum orifices on the replaceable sacrificial plate.
Q: Is there after-sales service available in India?
A: Yes, we have authorized distributors in India. Contact information for the local distributor will be provided at the time of purchase.
