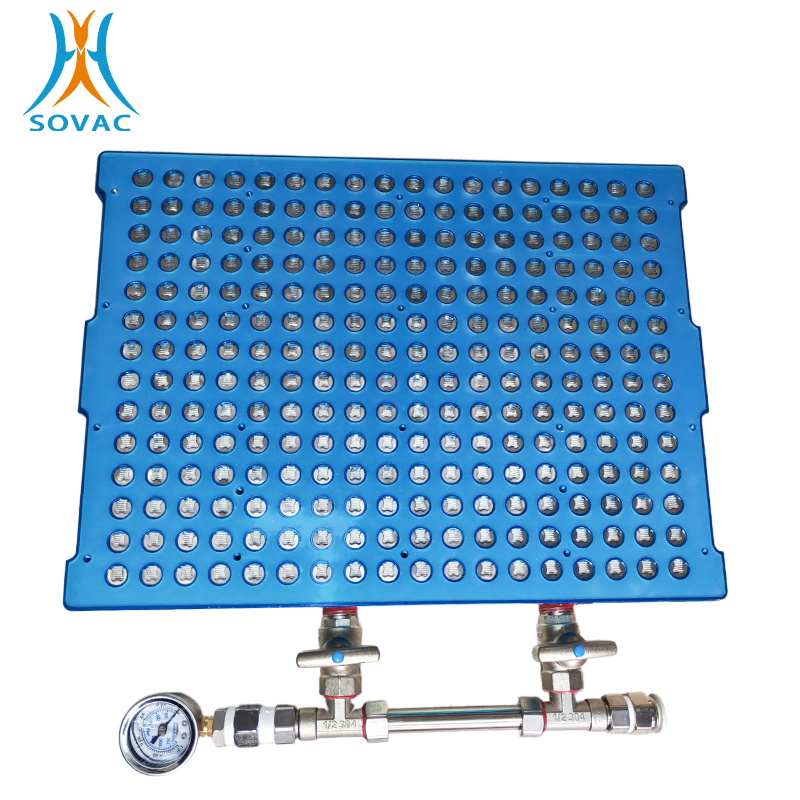

PRI-3040 Primary Vacuum Table for engineering plastic milling
70000.0 INR/Piece
Product Details:
- Usage Clamping of thin sheet metal and engineering plastics in CNC machining
- Equipment Type Vacuum Table
- Material Other
- Processing Type Standard
- Size 300*400*48mm
- Condition New
- Height 48 Millimeter (mm)
- Click to view more
X
PRI-3040 Primary Vacuum Table for engineering plastic milling Price And Quantity
- 70000.0 INR/Piece
- 1 Piece
- Oil-lubricated Rotary Vane
- Approx. 300 kg
- Smooth Stainless Steel Surface
- 3000 mm x 1400 mm
- Overload Protection, Emergency Stop Switch
- Electronic Touch Control
- Mounted on Heavy Duty Wheels
- Silver/Blue
- 0.1 mm
- Low Noise Operation
PRI-3040 Primary Vacuum Table for engineering plastic milling Product Specifications
- Clamping of thin sheet metal and engineering plastics in CNC machining
- 300*400 Millimeter (mm)
- Vacuum clamping system
- 220V/50Hz Volt (v)
- -0.08~-0.1 mpa
- Pneumatic
- 300 Millimeter (mm)
- 750 Watt (W)
- 48 Millimeter (mm)
- Vacuum Table
- 400 Millimeter (mm)
- New
- Other
- 1 year
- Vacuum Pump, Automatic vacuum liqudi separator
- Blue
- 300*400*48mm
- Anodizing
- Non-ferrous metals and engineering plastics milling clamps
- Standard
- Other
- 24 Kilograms (kg)
- Oil-lubricated Rotary Vane
- Approx. 300 kg
- Smooth Stainless Steel Surface
- 3000 mm x 1400 mm
- Overload Protection, Emergency Stop Switch
- Electronic Touch Control
- Mounted on Heavy Duty Wheels
- Silver/Blue
- 0.1 mm
- Low Noise Operation
PRI-3040 Primary Vacuum Table for engineering plastic milling Trade Information
- Cash in Advance (CID)
- 2500 Piece Per Month
- 10 Days
- All India
Product Description
1. Maximum workpiece size that can be clamped: 300mm*400mm;
2. It is recommended that the workpiece size be larger than 100mm*100mm;
3. Suitable workpiece thickness: 1~40mm
4. Number and diameter of vacuum holes: 252 12mm;
5. Modular design;
6. No sealing rope required;
7. Allows for complete milling of the workpiece;

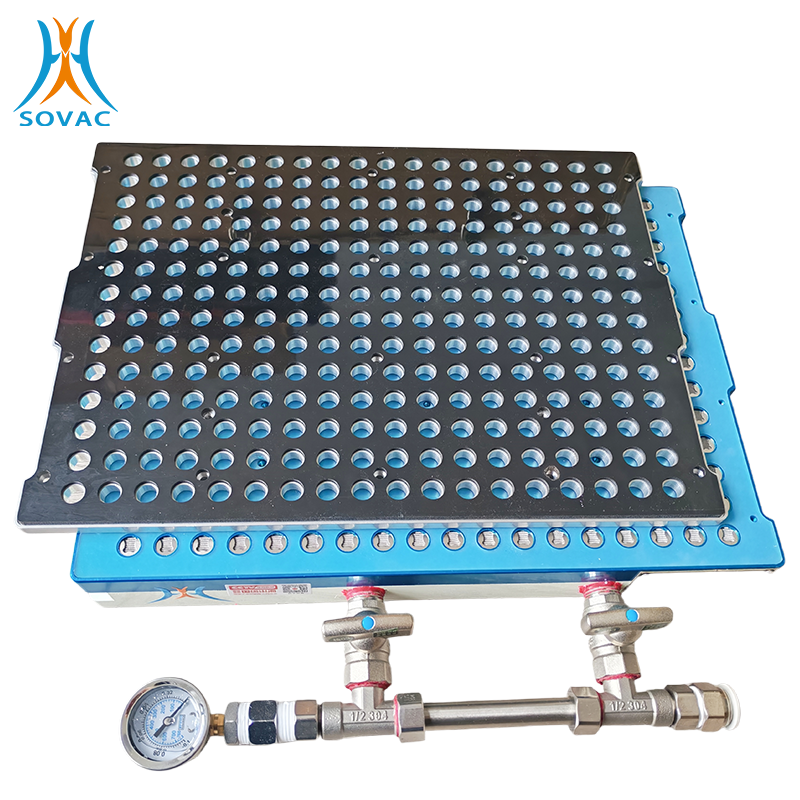

8. Replaceable polyurethane clamping surfaces allow for multiple overhauls of the clamping surfaces;

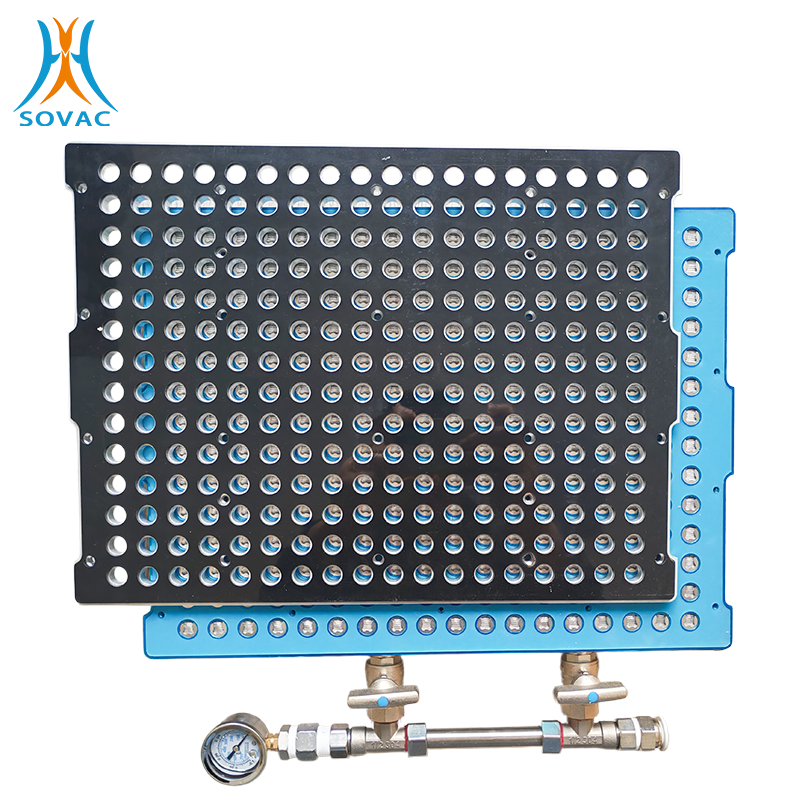

9. Replaceable protective plates, with soft and medium-hard clamping surfaces to choose from;
10. Suitable for thin sheet metal workpieces of various materials, including non-ferrous metals, non-metals (glass fiber, ceramics, graphite), engineering plastics (POM, bakelite, PTFE, polyurethane, PTFE, PEEK, epoxy resin) and substrates;
11. Allows the use of cutting fluid;
12. Belongs to the category of low-precision vacuum tables, with a maximum clamping accuracy of 0.02mm;
Versatile Applications and Superior Surface Quality
A replaceable protective plate fully protects the vacuum table main unit from damage. The protective plate is replaceable and is a low-cost consumable. The soft clamping surface of the vacuum table main unit can also be used as an emergency clamping surface. The soft clamping surface of the main unit can accommodate workpieces with poor flatness. Compared to traditional grid vacuum tables, this new automatic valve vacuum table can quickly complete clamping, and its advantages are even more apparent for irregularly shaped workpieces. Localized after-sales service is provided for Indian users.
Packaging, Payment, and Sample Provision
The PRI-3040-M is a series specifically developed based on comprehensive research of existing users in India. For Indian users, the vacuum table is now sold at a highly competitive price, with door-to-door air freight service provided by internationally renowned courier companies such as FedEx. Each unit is securely packaged to prevent damage during transport, ensuring smooth delivery to your factory. With its strong innovative capabilities, it meets the vacuum clamping needs of most users, making this vacuum table ideal for distributors and customers seeking fast and reliable delivery. Experience the superior logistics and flexible options offered by experienced exporters and manufacturers.
FAQ's of PRI-3040-M Primary Vacuum Table:
Q: How does the PRI-3040 Primary Vacuum Table enhance milling precision?
A: The PRI-3040's smooth aluminum surface and advanced vacuum technology maintain surface flatness within 0.02 mm, ensuring precise material placement and clamping for every application.Q: What is the process for operating the vacuum and control features?
A: Simply connect an oil-lubricated rotary vane vacuum pump or an oil-free piston vacuum pump, and connect the vacuum table and the pump via a vacuum hose. First, place the workpiece on the surface of the vacuum table, and then turn on the vacuum table. The workpiece will then be clamped.Q: Where can the PRI-3040 Vacuum Table be applied?
A: Milling of engineering plastics, drilling and milling of non-ferrous metals, and clamping of thin plate workpieces for precision engraving of non-metallic materials.Q: When is sample availability and how can I request one?
A: We cannot provide free samples at the moment, but we can share user case studies from your city.Tell us about your requirement
